165mm surface mount bollard 1300mm high

165mm Surface Mount Bollard ‚ 1300mm High

Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.

ASNZ 2890.1:2004 compliant for car parks.

60 day returns. No re-stocking fees.

100% money back guarantee. Not satisfied? Full refund, no questions asked.

$150 inc GST minimum order

Buy now!

$248.00 inc GST

Notify me when back in stock

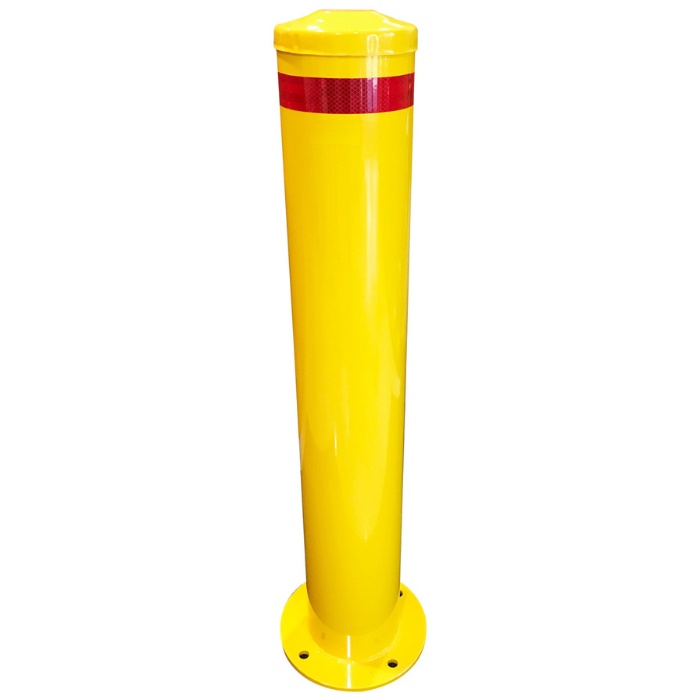

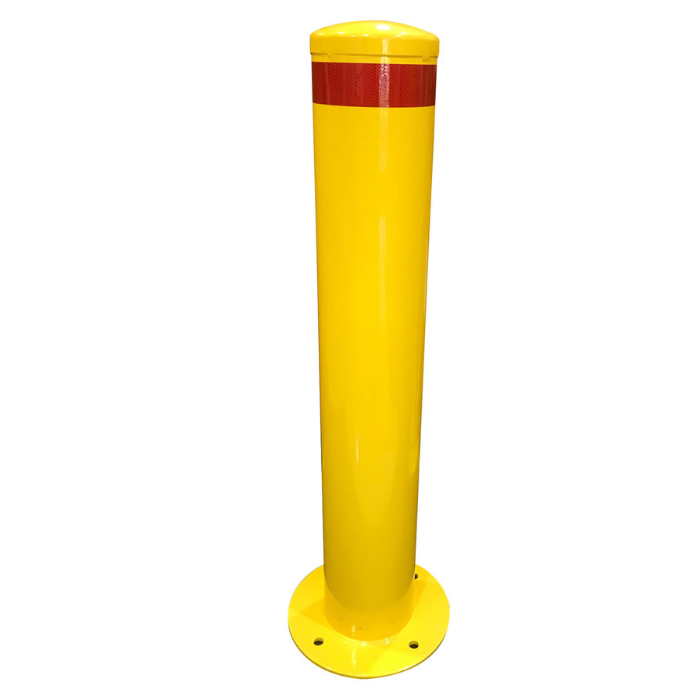

165mm Surface Mount Bollard ‚ Galvanised Steel, Safety Yellow, High-Impact, AS Compliant

When security patrols aren't viable, this heavy-duty bollard does the job. The 165mm Surface Mount Bollard delivers high-impact resistance and visual deterrence for critical infrastructure, commercial zones, and retail environments. Ideal for builders and facility managers securing access points and vulnerable assets.

Constructed from galvanised steel and finished in safety yellow powder coat with Class 1 red reflective tape, this bollard stands out around the clock. Engineered for anti-ram performance and ease of installation, it‚ your go-to surface-mount solution.


Key Features


  • Material: Galvanised Steel
  • Finish: Powder Coated Yellow with Class 1 Red Reflective Tape
  • Height: 1300mm
  • Diameter: 165mm
  • Wall Thickness: 3mm
  • Base Plate: 300mm Diameter √ó 10mm Thick with 4 √ó 16mm Mounting Holes
  • Weight: 21kg
  • Installation: Surface mount with 4 heavy-duty bolts (included)
  • Visibility: Complies with AS visibility standards


Spec Sheet



Why Choose the 165mm Surface Mount Bollard?


  • Maximum Deterrence: Strong physical barrier for ram raid prevention
  • Highly Visible: Red reflective band and yellow finish for day and night visibility
  • Simple Installation: No core drilling‚just secure with supplied fixings
  • Heavy-Duty Base: Large 300mm base plate maximises stability
  • Trusted Nationwide: Used by councils, retailers, and asset managers Australia-wide


Drill Bit Requirements

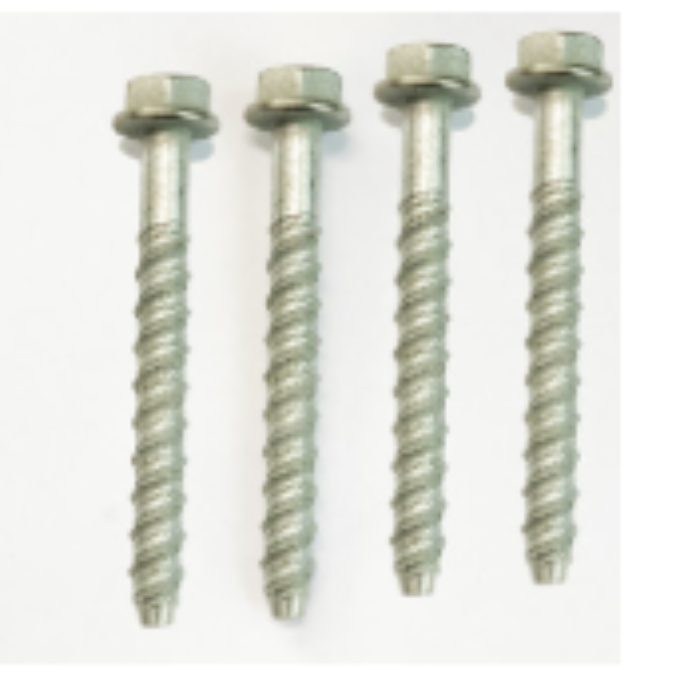

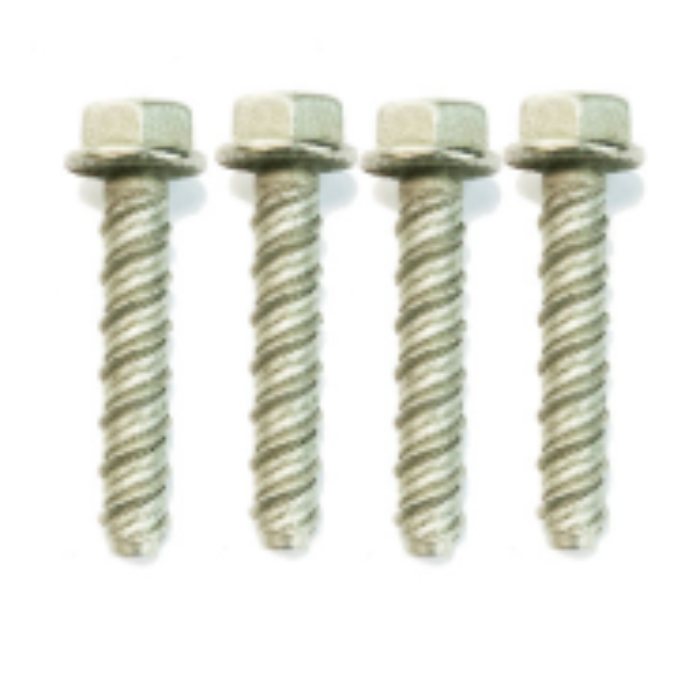

  • M10 Coach Screw (100mm): Use 14mm SDS Masonry Drill Bit

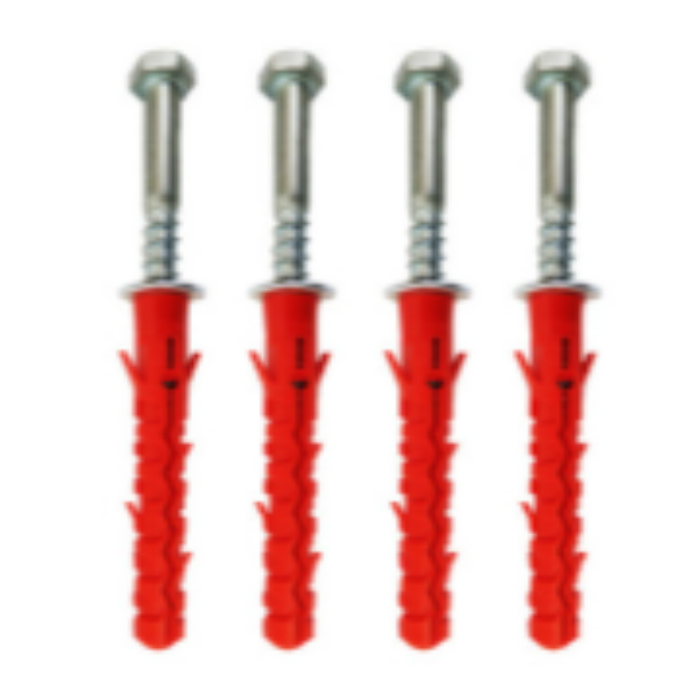

  • M10 Concrete Anchors (60mm or 100mm): Use 10mm SDS Masonry Drill Bit


Applications

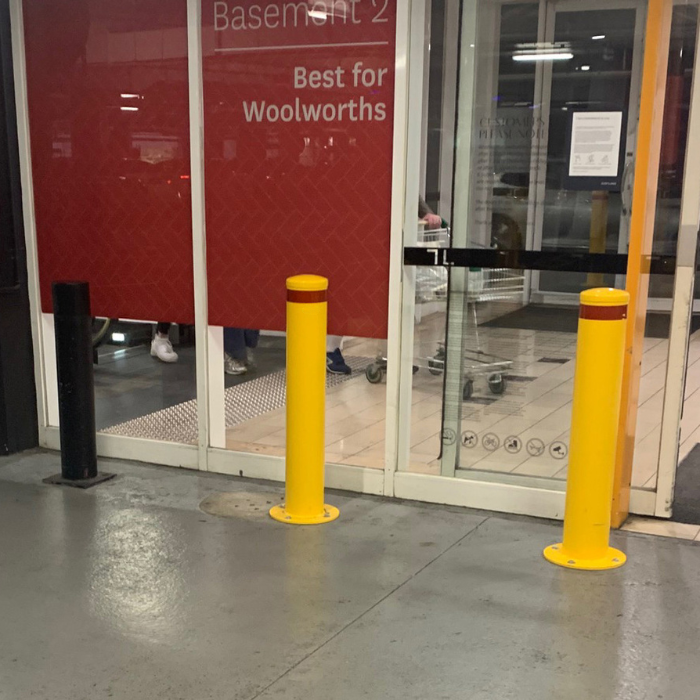

  • Shopping centres and retail entry points
  • Commercial buildings and vehicle gates
  • Banks and financial institutions
  • Critical infrastructure and council zones
  • Asset protection at loading docks and site entries


Frequently Asked Questions


Is this bollard suitable for ram-raid prevention?
Yes ‚ it‚ designed to absorb vehicle impact and protect key entry points.


Do I need to core drill the surface?
No ‚ this is a surface-mounted bollard with a pre-drilled base plate and supplied bolts.


What kind of drill bit do I need?
Use a 14mm SDS bit for M10 coach screws or 10mm SDS for concrete anchors.


Does it come with fixings?
Yes ‚ 4 heavy-duty mounting bolts are included for installation on concrete or asphalt.


Is it visible at night?
Yes ‚ the Class 1 red reflective tape ensures clear visibility in low-light conditions.


How heavy is the bollard?
Each unit weighs approximately 21kg, offering high stability once installed.


Need robust, no-nonsense protection? The 165mm Surface Mount Bollard delivers high-strength barrier defence with zero fuss installation. Buy now!
