galvanised in ground bollard 165mm x 1600mm

Galvanised In-Ground Bollard ‚ 165mm x 1600mm

Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.

ASNZ 2890.1:2004 compliant for car parks.

60 day returns. No re-stocking fees.

100% money back guarantee. Not satisfied? Full refund, no questions asked.

$150 inc GST minimum order

Buy now!

$287.46 inc GST

Notify me when back in stock

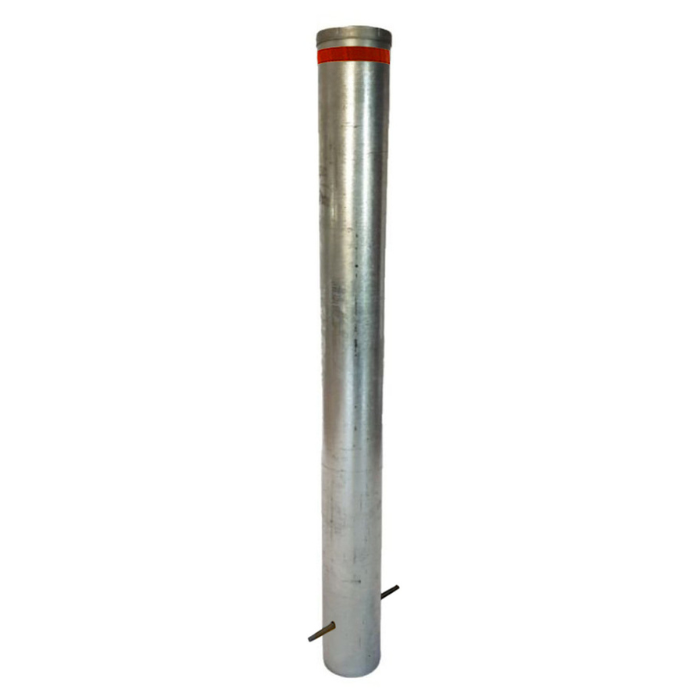

165mm In-Ground Galvanised Steel Bollard ‚ 1600mm High, Concrete-Fillable, Class 1 Reflective Tape

Designed for long-term installation in high-traffic or asset-sensitive areas, the 165mm In-Ground Galvanised Steel Bollard provides superior protection and durability. Whether you're safeguarding infrastructure, warehouse perimeters, or public zones, this heavy-duty bollard delivers reliable impact resistance.

Made from hot-dip galvanised steel, it resists rust and corrosion even in harsh outdoor environments. A loose top cap allows the bollard to be concrete-filled on site for added strength. Finished with Class 1 red reflective tape, it ensures visibility in all lighting conditions.


Key Features


  • Design: In-ground installation for permanent security
  • Material: Hot-dip galvanised steel
  • Finish: Raw galvanised (no powder coat) with Class 1 red reflective band
  • Height: 1600mm total (1300mm above ground, 300mm below ground)
  • Diameter: 165mm
  • Wall Thickness: 5mm
  • Weight: 32.6kg
  • Concrete Fillable: Loose cap allows for optional concrete reinforcement
  • Fixings: Anchor rod not included (set in concrete required)


Spec Sheet



Why Choose the 165mm In-Ground Galvanised Bollard?


  • Strong and durable with thick steel walls
  • Corrosion-resistant galvanised finish for outdoor use
  • Optional concrete fill increases impact resistance
  • Meets safety requirements with reflective visibility
  • Long-term solution for permanent installations


Frequently Asked Questions


Is this bollard suitable for high-impact areas?
Yes. With a 165mm diameter and 5mm wall thickness, it provides exceptional impact resistance, especially when concrete-filled.


Can it be retrofitted into existing concrete?
No. This model is designed for new concrete pours. For retrofits, a surface-mount or core-drill-compatible version is recommended.


Does it include an anchor rod?
No anchor rod is included. The bollard is intended to be directly set into fresh concrete for secure installation.


Is it visible at night?
Yes. The Class 1 red reflective band ensures high visibility in low-light and nighttime conditions.


What type of finish is used?
The bollard is hot-dip galvanised for corrosion resistance and left raw (no powder coat) for a rugged industrial look.


Can I fill it with concrete?
Yes. The bollard includes a loose top cap for optional concrete filling to enhance durability and stability.


Ideal For


  • Warehouses, factories, and logistics facilities
  • Car parks and access-restricted areas
  • Asset protection for commercial and council infrastructure
  • Sites requiring long-term, corrosion-resistant bollards


Order Now ‚ Durable In-Ground Protection That Lasts
Secure your site with confidence using the 165mm Galvanised In-Ground Bollard. Built to last and designed for maximum protection in demanding environments.
