Guard Rail 1200mm Post with Baseplate

Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.

ASNZ 2890.1:2004 compliant for car parks.

60 day returns. No re-stocking fees.

100% money back guarantee. Not satisfied? Full refund, no questions asked.

$150 inc GST minimum order

Buy now!

$172.00 inc GST

Notify me when back in stock

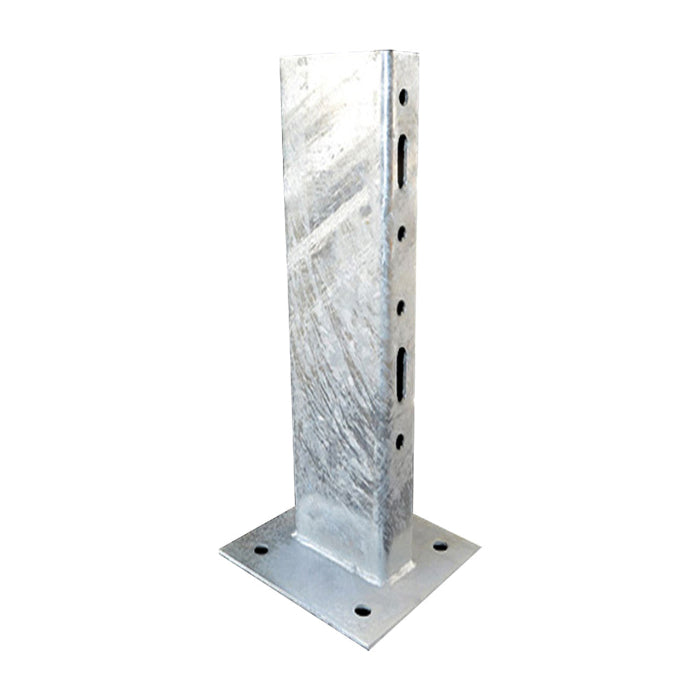

1200mm Galvanised Guard Rail Post with Baseplate – Surface Mount, Double Punched for 2 Rails, AS 4680 Compliant

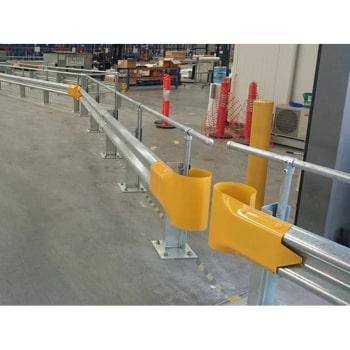

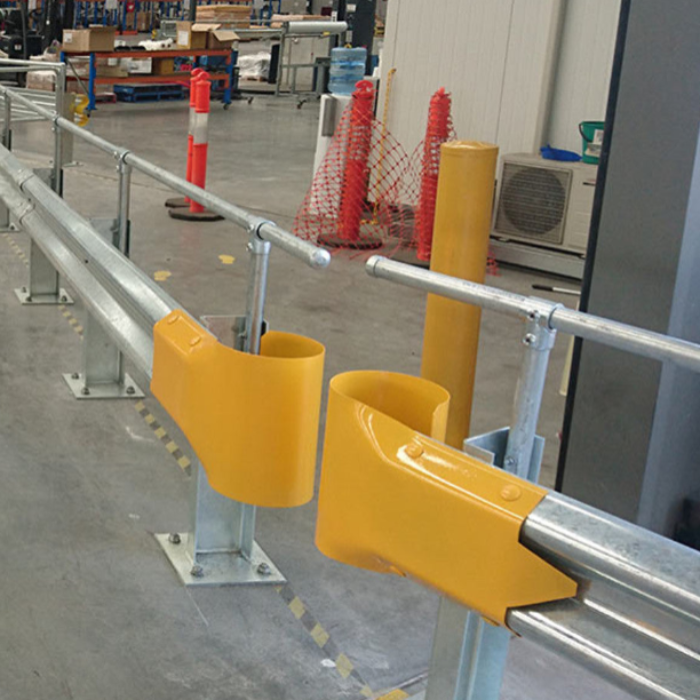

Built for heavy-duty surface mounting and dual-rail configurations, this 1200mm Guard Rail Post with Baseplate is ideal for high-impact zones in warehouses, car parks, loading docks, and civil infrastructure. It’s the standard for fixing W-beam barriers to concrete floors while ensuring long-term strength and compliance.

Made from hot-dip galvanised steel and certified to AS 4680:2006, this post features a 6mm thick “C” channel profile welded to a solid 300mm x 300mm x 10mm baseplate. Double-punched to suit two-rail installations, it’s a versatile and reliable option for dual-beam barrier systems.


Key Features


  • Material: Hot-dip galvanised steel
  • Finish: Galvanised to AS 4680:2006
  • Height: 1200mm
  • Mounting Type: Surface mount with bolt-down baseplate
  • Post Profile: 6mm thick “C” channel, 178mm wide with 76mm returns
  • Baseplate Size: 300mm x 300mm x 10mm thick
  • Baseplate Holes: 24mm diameter – designed for 20mm bolts or chemset studs
  • Rail Compatibility: Double punched to support two W-beam rails
  • Weight: 18kg


Why Choose the 1200mm Guard Rail Post with Baseplate – Double Punched?


  • Ready for dual-rail installations for added impact protection
  • Hot-dip galvanised for long-term rust resistance
  • Complies with AS 4680 for public and industrial safety applications
  • Baseplate with oversized bolt holes offers superior anchor strength
  • Ideal for civil infrastructure, warehouses, and commercial facilities


Applications


  • Guardrail systems on concrete floors
  • Loading docks and traffic control barriers
  • Factory and warehouse safety zones
  • Public infrastructure and pedestrian shielding
  • Vehicle containment systems in car parks and depots


Frequently Asked Questions


Is this post compliant with Australian standards?
Yes, it is galvanised in accordance with AS 4680:2006 for corrosion protection and civil-grade use.


How is this post installed?
It is surface-mounted with four bolts or chemset studs into concrete. The 24mm holes are ideal for 20mm fixings.


Can this post hold more than one rail?
Yes, it is double-punched to support two W-beam guardrails.


Do you offer custom heights?
Yes, we can manufacture custom post heights from 700mm up to 1200mm. Call 1300 049 246 for a quote.


Are bolts and rails included?
No, but we can supply a complete system with rails, posts, and fixings tailored to your project.


Need a compliant, dual-rail guardrail post for concrete installs? Choose the 1200mm Guard Rail Post with Baseplate – built for strength, visibility, and long-term performance. Buy now!

Who we've worked with

Description

1200mm Galvanised Guard Rail Post with Baseplate – Surface Mount, Double Punched for 2 Rails, AS 4680 Compliant

Built for heavy-duty surface mounting and dual-rail configurations, this 1200mm Guard Rail Post with Baseplate is ideal for high-impact zones in warehouses, car parks, loading docks, and civil infrastructure. It’s the standard for fixing W-beam barriers to concrete floors while ensuring long-term strength and compliance.

Made from hot-dip galvanised steel and certified to AS 4680:2006, this post features a 6mm thick “C” channel profile welded to a solid 300mm x 300mm x 10mm baseplate. Double-punched to suit two-rail installations, it’s a versatile and reliable option for dual-beam barrier systems.


Key Features


  • Material: Hot-dip galvanised steel
  • Finish: Galvanised to AS 4680:2006
  • Height: 1200mm
  • Mounting Type: Surface mount with bolt-down baseplate
  • Post Profile: 6mm thick “C” channel, 178mm wide with 76mm returns
  • Baseplate Size: 300mm x 300mm x 10mm thick
  • Baseplate Holes: 24mm diameter – designed for 20mm bolts or chemset studs
  • Rail Compatibility: Double punched to support two W-beam rails
  • Weight: 18kg


Why Choose the 1200mm Guard Rail Post with Baseplate – Double Punched?


  • Ready for dual-rail installations for added impact protection
  • Hot-dip galvanised for long-term rust resistance
  • Complies with AS 4680 for public and industrial safety applications
  • Baseplate with oversized bolt holes offers superior anchor strength
  • Ideal for civil infrastructure, warehouses, and commercial facilities


Applications


  • Guardrail systems on concrete floors
  • Loading docks and traffic control barriers
  • Factory and warehouse safety zones
  • Public infrastructure and pedestrian shielding
  • Vehicle containment systems in car parks and depots


Frequently Asked Questions


Is this post compliant with Australian standards?
Yes, it is galvanised in accordance with AS 4680:2006 for corrosion protection and civil-grade use.


How is this post installed?
It is surface-mounted with four bolts or chemset studs into concrete. The 24mm holes are ideal for 20mm fixings.


Can this post hold more than one rail?
Yes, it is double-punched to support two W-beam guardrails.


Do you offer custom heights?
Yes, we can manufacture custom post heights from 700mm up to 1200mm. Call 1300 049 246 for a quote.


Are bolts and rails included?
No, but we can supply a complete system with rails, posts, and fixings tailored to your project.


Need a compliant, dual-rail guardrail post for concrete installs? Choose the 1200mm Guard Rail Post with Baseplate – built for strength, visibility, and long-term performance. Buy now!
