Guard Rail 1200mm Post with Baseplate – 1 Rail Hole

Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.

ASNZ 2890.1:2004 compliant for car parks.

60 day returns. No re-stocking fees.

100% money back guarantee. Not satisfied? Full refund, no questions asked.

$150 inc GST minimum order

Buy now!

$130.00 inc GST

Notify me when back in stock

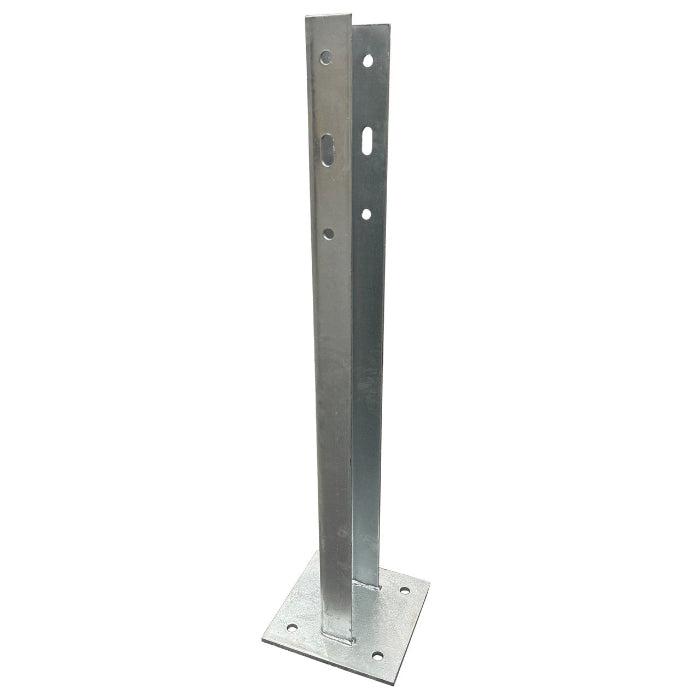

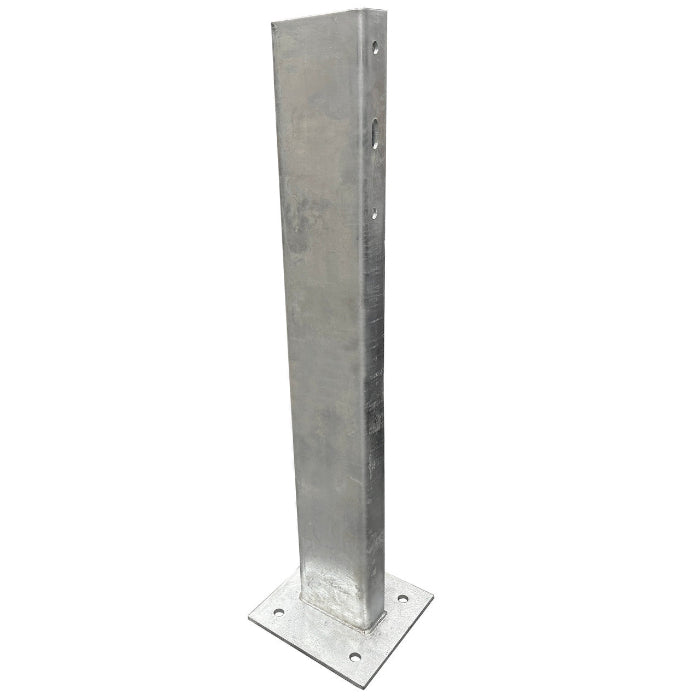

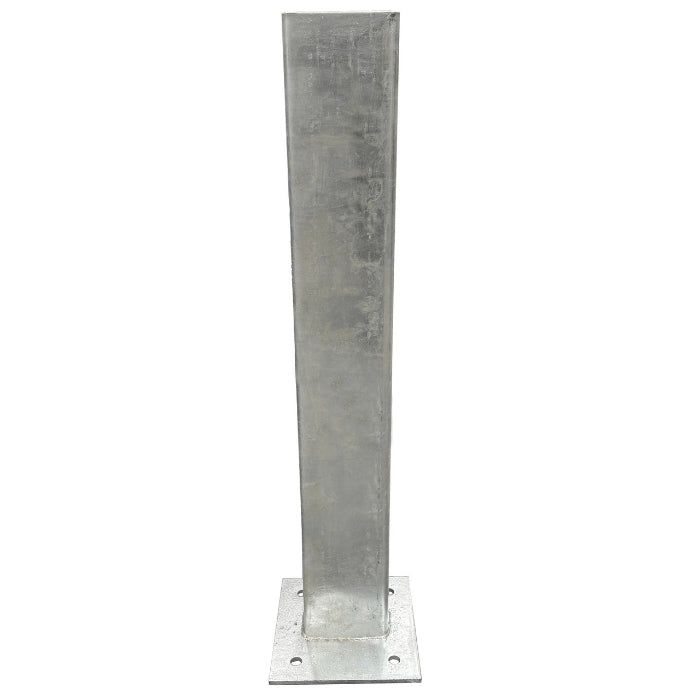

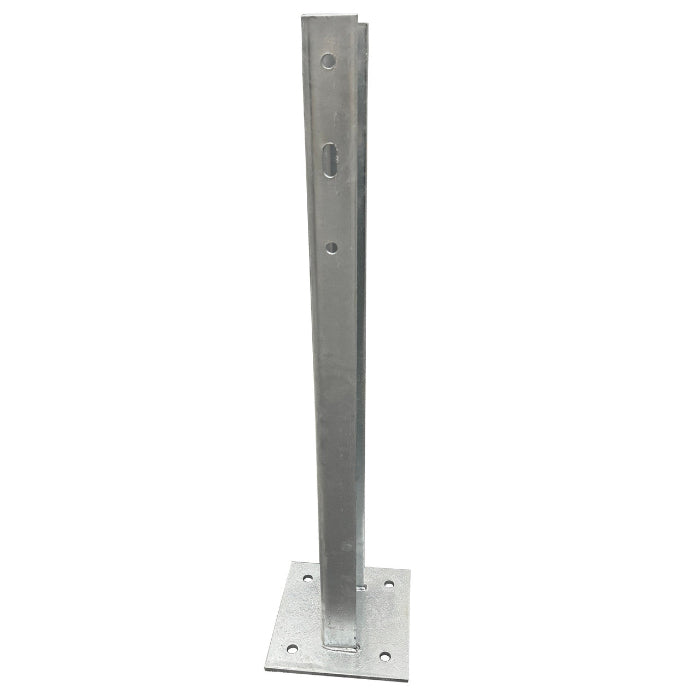

1200mm Surface-Mount Guard Rail Post with Baseplate – Galvanised Steel, Single Hole for 1 Rail, AS 4680 Compliant

Built for permanent surface-mount installations on concrete slabs and industrial floors, this 1200mm Guard Rail Post with Baseplate is the most common and robust solution for securing W-beam safety barriers. Designed for warehouses, factories, and roadside environments, it delivers unmatched strength and compliance.

Constructed from hot-dip galvanised steel and compliant with AS 4680:2006, the post features a welded 6mm “C” channel and a solid 300mm x 300mm x 10mm thick baseplate. 24mm mounting holes are designed to accept true 20mm bolts or chemset studs for a heavy-duty hold in all conditions.


Key Features


  • Material: Hot-dip galvanised steel
  • Finish: Galvanised to AS 4680:2006
  • Height: 1200mm
  • Mounting Type: Surface-mount (bolt-down)
  • Post Profile: 6mm thick “C” channel, 178mm wide with 76mm returns
  • Baseplate Size: 300mm x 300mm x 10mm thick
  • Baseplate Holes: 24mm diameter – designed for M20 bolts or studs
  • Rail Compatibility: Single-hole configuration for 1 W-Beam rail
  • Weight: 26kg


Why Choose the 1200mm Guard Rail Post with Baseplate – Single Hole?


  • Fast, secure surface mounting for guardrail systems
  • AS 4680 compliant for galvanised performance and public safety
  • Designed for long-term use in harsh environments
  • Reinforced baseplate with oversized holes for superior bolt strength
  • Ideal for use in car parks, warehouses, factories, and roadside zones


Applications


  • Concrete slab installations for guardrails
  • Warehouse and pedestrian protection zones
  • Roadside and public safety barriers
  • Industrial machine and asset protection
  • Car parks and traffic control barriers


Frequently Asked Questions


Is this post compliant with Australian standards?
Yes, it is galvanised to AS 4680:2006 and suitable for civil and public safety installations.


What size bolts should I use?
The baseplate has 24mm holes designed for M20 true bolts or chemset studs for optimal strength.


Can I use this with other rail types?
This post is designed for single W-beam rail installation. Contact us for multi-rail or corner post options.


Is custom sizing available?
Yes, we offer custom height posts from 700mm to 1200mm. Contact us at 1300 049 246 for a quote.


Is this post ready to install?
Yes, it ships fully welded. Just add appropriate surface fixings based on your site conditions.


Need a strong, compliant post for your W-beam guardrail? Choose the 1200mm Galvanised Guard Rail Post with Baseplate – engineered for maximum hold and industrial performance. Buy now!
