Guard Rail 700mm Post with Baseplate
Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.
ASNZ 2890.1:2004 compliant for car parks.
60 day returns. No re-stocking fees.
100% money back guarantee. Not satisfied? Full refund, no questions asked.
$150 inc GST minimum order
Buy now!
$118.00
inc GST

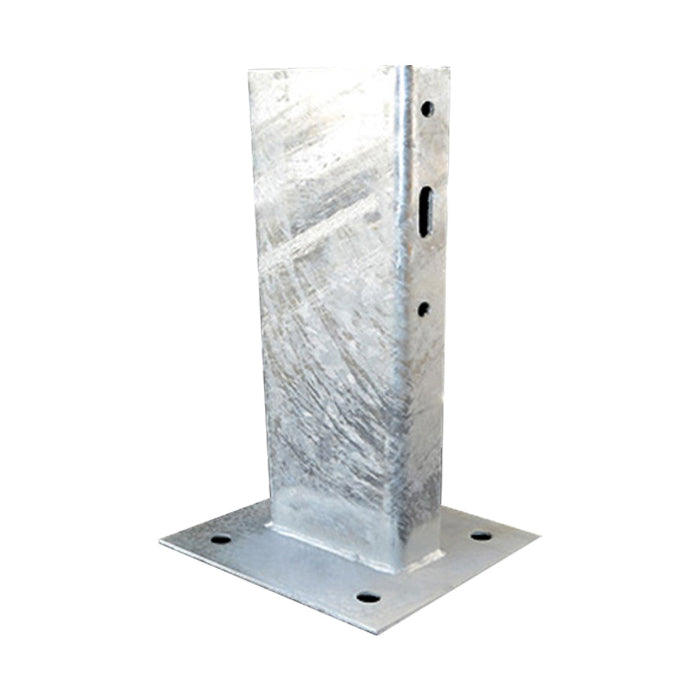

700mm Galvanised Guard Rail Post with Baseplate – Surface Mount, Custom Rail Punching
Compact, compliant, and built for heavy-duty performance, the 700mm Guard Rail Post with Baseplate is a reliable solution for securing W-beam guardrails to concrete floors. Ideal for warehouses, car parks, and industrial settings, this post provides a low-profile safety barrier anchor without compromising durability or stability.
Constructed from hot-dip galvanised steel and welded to a solid 300mm x 300mm x 10mm baseplate, the post features a rugged 6mm thick “C” channel design. Its oversized 24mm baseplate holes are engineered to accept true 20mm bolts or chemset studs for superior holding strength in high-impact areas. The post can be punched for 1, 2, or 3 rail combinations depending on your configuration needs.
Key Features
- Material: Hot-dip galvanised steel

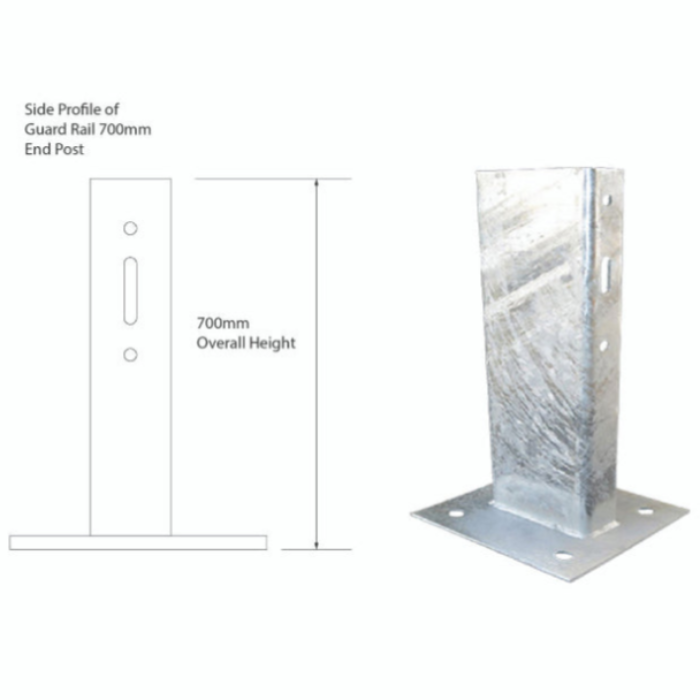

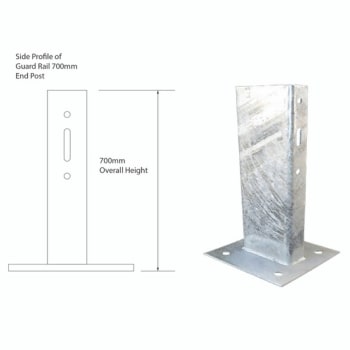

- Height: 700mm
- Mounting Type: Surface mount with bolt-down baseplate

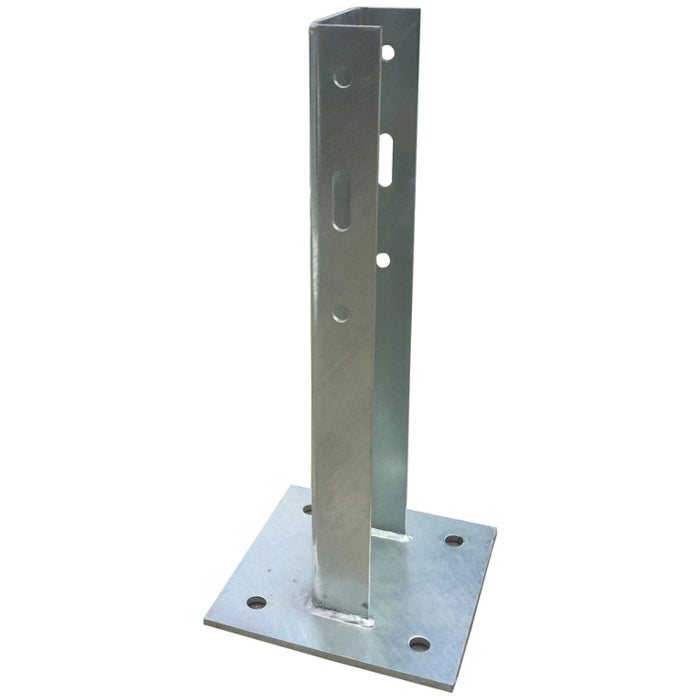

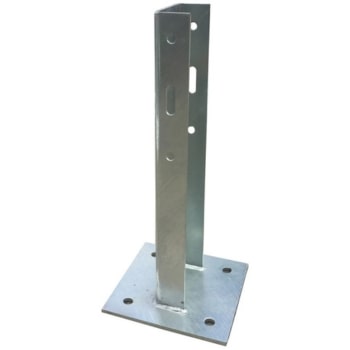

- Post Profile: 6mm “C” channel, 178mm wide with 76mm returns
- Baseplate Size: 300mm x 300mm x 10mm thick
- Baseplate Holes: 24mm diameter – compatible with 20mm bolts or chemset studs
- Rail Compatibility: Can be custom punched for 1, 2, or 3 W-beam guardrails
- Weight: 17kg
Why Choose the 700mm Guard Rail Post with Baseplate?
- Low-profile height for specific barrier applications
- Heavy-duty baseplate design for permanent surface installations
- Custom punching options to suit your safety layout
- Galvanised to withstand outdoor, industrial, or marine environments
Applications
- Warehouse safety railings
- Car park pedestrian barriers
- Machine guarding in factory settings
- Perimeter control in logistics and transport yards
- Industrial or civil site safety barriers
Frequently Asked Questions
Is this post compliant with Australian standards?
Yes, this post is hot-dip galvanised by AS 4680:2006, ensuring high corrosion resistance for long-term durability.
How is the post installed?
It is designed to be surface mounted on concrete using 20mm bolts or chemset studs through the 24mm holes in the baseplate.
Can it support more than one rail?
Yes, it can be punched to support one, two, or three W-beam guardrails depending on your needs.
What applications is this post suited for?
Perfect for car parks, warehouse pedestrian safety zones, loading docks, and industrial perimeters.
Do you offer other heights or custom punching?
Yes, custom post heights and punching configurations are available. Please contact us on 1300 049 246 to discuss your requirements.
Need a compact, rugged guardrail post for surface mounting?
Choose the 700mm Galvanised Guard Rail Post with Baseplate engineered for strength, flexibility, and durability in any setting. Order now or contact us for custom punching options!
