Guard Rail W-Beam 0.5M Galvanised – Heavy-Duty Safety Barrier
Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.
ASNZ 2890.1:2004 compliant for car parks.
60 day returns. No re-stocking fees.
100% money back guarantee. Not satisfied? Full refund, no questions asked.
$150 inc GST minimum order
Buy now!
$52.00
inc GST
Guard Rail W-Beam 0.5m – Hot-Dip Galvanised Steel, AS 4680 Compliant Barrier
Designed for construction zones, warehouses, and road safety installations, this 0.5m Guard Rail W-Beam offers high-impact protection and pedestrian separation in high-traffic areas. Perfect for contractors, builders, and procurement teams seeking compliant, long-lasting safety barriers.
Constructed from hot-dip galvanised steel, this short-span barrier section is engineered to withstand harsh outdoor environments while complying with AS 4680:2006 standards. It’s built for the demanding conditions of Australian roads, factories, and industrial sites.
Key Features
- Material: Hot-dip galvanised steel
- Finish: Galvanised (zinc coating for corrosion resistance)

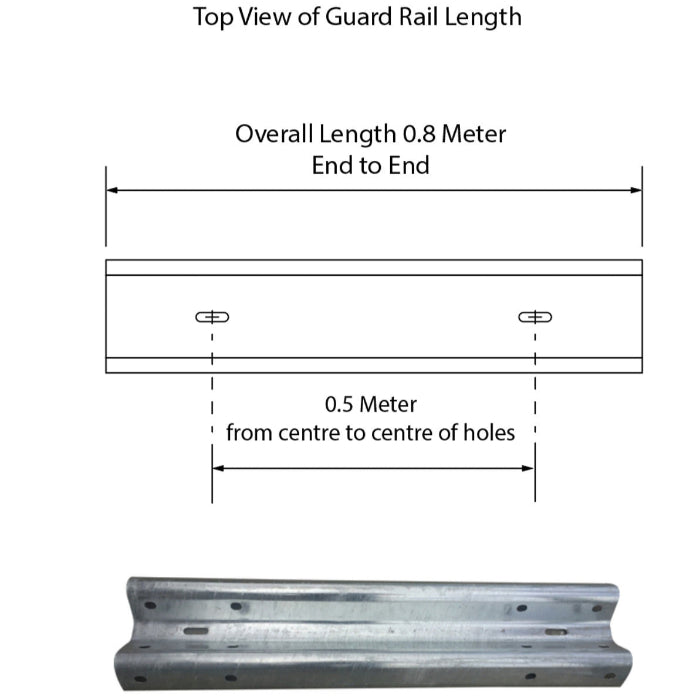

- Dimensions: 500mm centre-to-centre mounting length; 800mm overall length; 350mm height
- Mounting Holes: 9mm diameter
- Weight: 9kg
- Installation: Bolt-on to matching w-beam posts (sold separately)
- Compliance: Certified to AS 4680:2006
- Durability: Built for long-term exposure in civil and industrial environments
Why Choose the Guard Rail W-Beam 0.5m Galvanised?
- Compact size ideal for tight zones or modular barrier systems
- Galvanised finish ensures rust resistance in tough conditions
- Compliant with AS 4680 for guaranteed structural and coating standards
- Fast and flexible installation using pre-drilled mounting holes
- Perfect for civil, warehouse, or indoor/outdoor use across multiple industries
Applications
- Construction zones and roadside barriers
- Warehouse traffic control and pedestrian delineation
- Factory floor protection systems
- Median strips and car park boundaries
- Loading docks and logistics hubs
Frequently Asked Questions
Is this compliant with Australian safety standards?
Yes, it complies with AS 4680:2006 for hot-dip galvanised steel products.
How long is the beam?
The total length is 800mm, with a mounting span of 500mm between centre holes.
Can I use this product indoors?
Yes, it's suitable for both indoor and outdoor environments due to its corrosion-resistant finish.
Are fixings and posts included?
No, this listing is for the guard rail only. Posts and bolts are available separately to match your project requirements.
What’s the shipping method?
This is a bulky item. Please call 1300 049 246 for the most cost-effective freight options.
Can I cut or modify the rail?
Modifying the guard rail is not recommended, as it may compromise structural integrity and compliance.
Is it suitable for coastal areas?
Yes, the galvanised coating offers strong resistance to corrosion, including marine environments.
Need a compact and compliant guard rail solution? Choose the Guard Rail W-Beam 0.5m Galvanised – built for tough conditions and trusted by Australian contractors. Buy now!
