Powdercoated Guard Rail W-Beam 1M – Heavy-Duty Protection
Delivery in 3 - 5 days. MAX 5 day delivery guarantee! Metro BNE, SYD, MEL.
ASNZ 2890.1:2004 compliant for car parks.
60 day returns. No re-stocking fees.
100% money back guarantee. Not satisfied? Full refund, no questions asked.
$150 inc GST minimum order
Buy now!
$134.00
inc GST

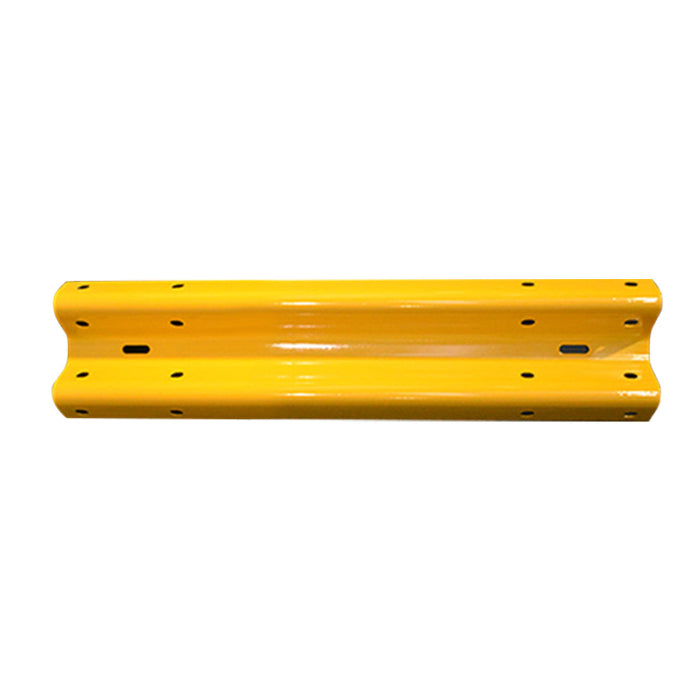

Guard Rail W-Beam 1m – Powdercoated Safety Yellow, AS 4680 Compliant Steel Barrier
Engineered for civil works, traffic control, and industrial safety zones, this 1m Guard Rail W-Beam offers high-strength protection and clear separation of vehicles and pedestrians. Ideal for construction sites, car parks, and warehouses, it's built for tradies, site managers, and contractors who need reliable, compliant safety barriers.
Manufactured from hot-dip galvanised steel and finished in powdercoated safety yellow, this barrier section is highly visible and weather-resistant. It meets AS 4680:2006 standards and is designed for long-term use across Australia’s toughest outdoor and indoor environments.
Key Features
- Material: Hot-dip galvanised steel
- Finish: Powdercoated Safety Yellow

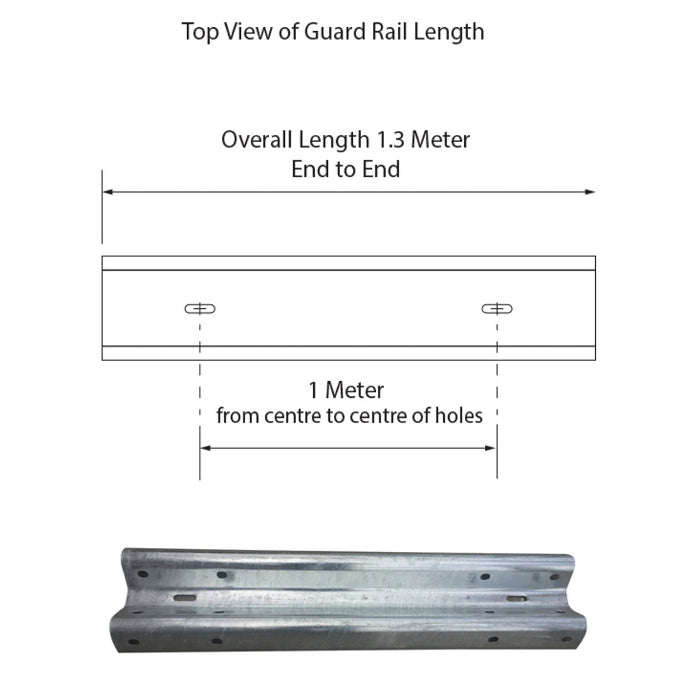

- Dimensions: 1000mm centre-to-centre mounting length; 1300mm overall length; 350mm height
- Mounting Holes: 9mm diameter
- Weight: 14kg
- Installation: Bolt-on to matching guard rail posts (sold separately)
- Compliance: Conforms to AS 4680:2006
- Durability: Built to withstand harsh industrial and outdoor environments
Why Choose the Guard Rail W-Beam 1m?
- Impact-tested design helps control and redirect vehicles
- Highly visible powdercoated finish enhances safety for drivers and workers
- AS 4680 compliance for peace of mind in regulated installations
- Ideal for modular layouts and short-span applications
- Long-lasting corrosion resistance even in coastal or heavy-duty environments
Applications
- Construction zones and road verges

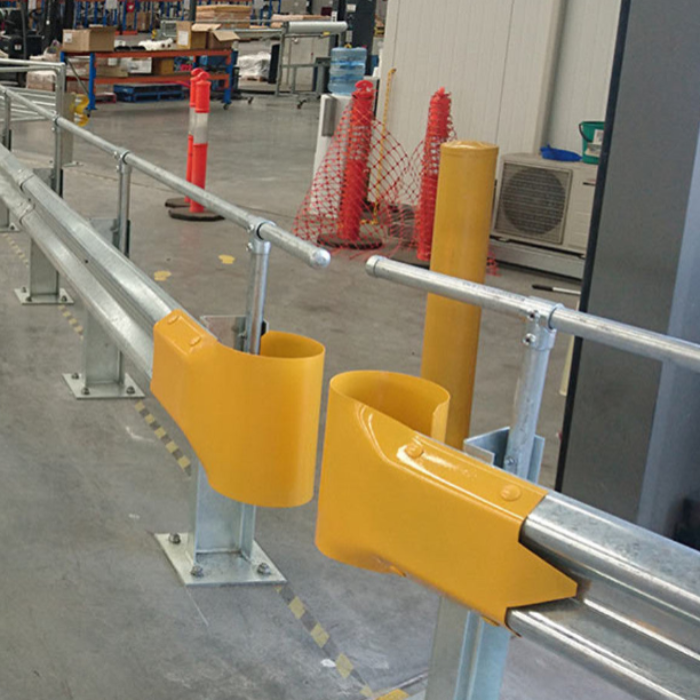

- Factory and warehouse pedestrian separation
- Public infrastructure and median strips
- Car park perimeters and traffic lanes
- Transport and logistics facilities
Frequently Asked Questions
Is the 1m guard rail compliant with Australian standards?
Yes, it’s manufactured to comply with AS 4680:2006 for galvanised protective coatings.
How long is the actual rail?
The overall length is 1300mm, with a mounting hole distance of 1000mm centre-to-centre.
Is this suitable for warehouse use?
Yes, it's designed for both indoor and outdoor environments where safety barriers are required.
Does it come with posts or fixings?
No, this product includes the rail only. Contact us to order matching posts and fixings separately.
How much does it weigh?
Approximately 14kg per rail section.
How can I get a shipping quote?
As this is a bulky item, please call us on 1300 049 246 to arrange the most cost-effective delivery option.
Can I use this in coastal environments?
Yes, the hot-dip galvanised coating provides excellent corrosion resistance for harsh outdoor or marine settings.
Do I need special tools for installation?
Standard tools for fixing bolts are sufficient. Posts must be secured appropriately to suit your site’s ground type.
Need a reliable, compliant barrier solution for your worksite? Choose the Guard Rail W-Beam 1m – trusted by Australian civil professionals for impact control, visibility, and long-term durability. Buy now!
